In general

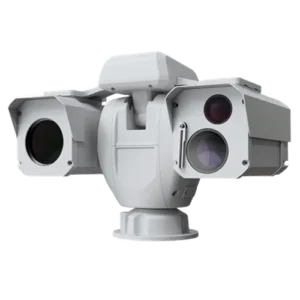

This 1161-456T6100L-IP thermal & optical Bi-spectrum Laser PTZ Camera integrates a visible camera of 4.0MP, 56x optical zoom and a thermal camera of 640*512, 30-150mm motorized zoom lens, it offers standard onvif stream, it could achieve very precise ptz operation and long range surveillance.
3000meters Laser illuminator or Laser Range Finder of 2km/3km/6km optional for precise surveillance.
Worm gear worm drive design, electronic anti-shake and mechanical anti-loose design inside ptz, Power- off self -lock.
High duty die-cast shock-absorbing alloy housing with strong painting for Waterproof and corrosion proof, Heat insulation, high temperature and cold resistance, impact resistance, corrosion resistance, with good wind resistance and shock absorption performance, could be best choice for long range surveillance.
The 4MP, 56x optical zoom network camera, and cooled thermal camera with 30-150mm motorized zoom lens make this PTZ have visible light up to 20km , best choice for long range surveillance in low illumination, bad haze weather, night and other 24/7 uninterrupted target recognition and tracking.
Features
◇ H.264/265/MJPEG main profile, support 3 code stream, ONVIF compliant.
◇ Built-in 5T computing power hardware processor, integrated intelligent algorithms for a variety of application scenarios.
◇ Offers fire and smoke identification, ship tracking; Support 3D alert/shield area, any Angle scene can be set. Support human, motor vehicles, non-motor vehicles, boats breaking into, leaving, staying, wandering, crossing the boundary and other behavior analysis; Can be deeply customized according to customer requirements.
◇ one ip address with 2 video of thermal and visible camera.
◇ Integrated with a visible camera of 4.0MP, 56x optical zoom and a cooled thermal camera of 640*512, 30-150mm motorized zoom lens, offer standard onvif stream, it could program preset, cruise, etc. on its web page, it could achieve very precise ptz operation.
◇ Extremely starlight camera, 1/1.8’’ Progressive Scan CMOS, up to 2688*1520, 6-336mm, 56x optical zoom.
◇ It could penetrate through the fog.
◇ uncooled thermal camera with 640×512 thermal camera. Instantaneous boot , low power consumption, low noise and high quality image.
◇ It could widely use for the environment such us night, bad environment, and farther range control.
◇ Data read-back: it could read back zoom ratio and PTZ Angle, which facilitates intelligent analysis by intelligent software such as Geografhic Information System (GIS) to track and locate fire situation, human and vehicle.
◇ Weather proof design,salt-spray resistant, high die-cast aluminum construction, anti-shock, anti-corrosion.
◇IP66 waterproof, with auto-induction wiper. automatic defogging, deicing and heating.
◇ 360°continuously rotation, the range upward angle-90-40°.
◇ precision ±0.01 degree for super high precise ptz position.
◇ high speed up to 100° per second.
Specifications
Mechanical
| Pan angle | 0°～360° Continuously |
| Pan speed | 0.01°～100°/s |
| Tilt angle | -90°～40° |
| Tilt speed | 0.01°～40°/s |
| Accuracy | ±0.01° |
| 3D orientation | support |
| Postion automatically returns | it can automatically go to its original position upon external impact |
| preset | 255 |
| Patrol | 16 |
| Apple peel scanning | 32 Kbps~16Mbps |
| Time period scanning | support |
| Temperature control | automatical heat |
| Power Off Memory | support |
| Remote update | support |
| Remote power-off restart | support |
| Browser | Automatic sensing/manual |
Network and Port
| Ethernet | 1, RJ45 10M/100M/1000M self-apative |
| Protocol | TCP/IP,UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,IGMP,
SMTP, NTP, QoS, etc. |
| Access | GB/T 28181, GA/T 1400, ONVIF |
| Alarm input | 2 |
| Alarm output | 1 |
| Simultaneous Live View | Up to 20 channels |
| Users | Up to 20 users, 3 levels: Administrator , Operator and User |
Professional intelligence
| fire smoke detection | Supports, minimum recognition pixel 10*10, supports linkage and tracking,
and joint judgment of visible camera and thermal camera |
| Deep perimeter | Support analysis of regional intrusion, departure, boundary crossing, lingering,
and staying, etc |
| Supports dual-spectrum detection of people, motor vehicles, non-motor vehicles
and ships, and provides linked tracking and alarm |
Thermal Camera
| Detector type | Uncooled vanadium oxide infrared focal plane detector | |
| Spectral range | 8~14μm | |
| Pixels | 640X512 | |
| Pixel size | 12μm | |
| sensitivity | ≤40mK @30°C,F#1.0 | |
| Sun protection against scorching | Support | |
| noise reduction | 3D | |
| Focus | Motorized/auto，manual | |
| Focal length | 100mm | 30~150mm |
| FOV | 4.4°×3.5° | 14.6°×11.7°~2.9°×2.3° |
| Iris | F1.2 | F0.85-F1.2 |
| Color Palettes | 20 modes selectable such as Blackhot/ Whitehot/ Rainbow, etc. | |
Visible camera
| Sensor type | 1/1.8” Progressive Scan CMOS |
| Maximum Pixels | 2688*1520 |
| visible camera pixel | 4MP |
| s/n ratio | ≥55dB |
| WDR | 120dB Optical wide dynamic range |
| minimal illumination | color: 0.002Lux @(F1.5,AGC ON) |
| B/W: 0.0002Lux @(F1.5,AGC ON) | |
| Video adjustment | support |
| noise reduction | 2D/3D |
| Anti-shake | electronic image stabilization |
| iris | auto iris |
| strong light inhibition | support |
| Day/night switch | auto/manual |
| Focus mode | auto / one time/ manual /Semi-automatic focus |
| Focus | 6-336mm |
| optical zoom | 56x |
| Digital zoom | 16x |
| Horizontal view angle | 66.0°×40.3°~1.3°×0.8° |
| Iris | F1.5-F4.8 |
| Fog Reduction | Optical Fog Reduction |
Laser illumator or Laser Range Finder
| Illumination | Laser illuminator |
| Laser Spectral Range | 808nm |
| Illuminating Distance | 1500m |
| LRF | Laser Range Finder |
| Laser Spectral Range | 905nm/1535nm |
| Measurement Distance | 2km/3km/6km |
Video/audio parameter
| Video encoding | H.264/H.265/MJPEG |
| Resolution | Thermal camera：
Main stream:50Hz:25fps (1280×1024,1024×768)， Sub stream: 50Hz:25fps (640×512， 320×256) |
| Visible camera：
Main stream: 25fps (2688*1520,2560*1440, 1920*1080); sub stream: 25fps(1920*1080,1280*720); |
|
| Frame ratio | 32 Kbps~16Mbps |
| Audio compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| encoding format | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
/16-64Kbps(AAC) |
Web page
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris,
preset calling and programming, auto mode |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Web Browser | IE 7+, Google 42-, Firefox 5.0 + |
In general
| Conditions | -40℃~+70℃;<90%RH |
| Power Supply | DC 48V±15% |
| Protection Level | IP66,TVS 6000V Lightning Protection, Surge Protection
and Voltage Transient Protection |
| Power Consumption | Max.300W |
| Dimensions | 295×572×419mm |
| Peripherals | Defrost heater, Rain-sensing wiper, Temperature and humidity sensor |
| Weight | 22kgs |
