FEATURES
☆ 304 or 316L Stainless steel material
☆ it could automatically identify camera modules.
☆ OSD menu
☆ Multiple protocol support
☆ 360° continuous pan rotation, movement speed up to 300°/sec
☆ IP68
☆ Indoor and outdoor for all weather use
☆H.264/265 main profile, support 4 code stream, ONVIF compliant .
☆1/2.8’’ Progressive Scan CMOS, up to 1920×1080, 20x optical zoom
☆25 fps at HD1080p
DESCRIPTION

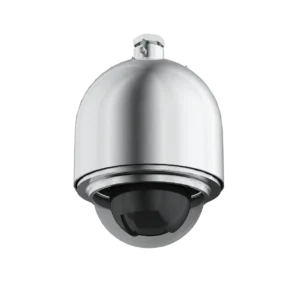

PEQ50 is an ex-proof monitoring ptz camera, with advanced technique and matured quality as its base, has been a successful product in market in the area of explosive and flammable for monitoring.
Integrated structure design, with no cable between pan/tilt and camera, turning at both pan/tilt and all direction.
It could automatically identify camera modules, including Sony,samsung, etc., all direction pan/tilt, and decoders inside, multiple communication protocol to response different orders.
100VAC~240VAC Supply voltage.
With alterable pan and tilt speed. Pan/tilt speed depends on lens focus and swivel range, 360° continuous panning, 90° tilting, 0.1° to 300°/s and maximum 400°/s on base of preset.
128 presets, including horizontal and vertical position of pan/tilt as well as focus position of lens.
It could work under -20℃ to +60℃ long-time stably.
Easy installation and maintenance, fixed brackets, base, pole or lattice tower for mounting.
CERTIFICATE
Ex-marking: ExdⅡCT6 / DIP A20 TA, T6
MECHANICAL
Material: Stainless steel 304 or 316L option.
waterproof: IP68
Pan: 360° continuous pan rotation
Tilt: +90° ~ -90°
Pan speed: 0.1°/S ~ 300°/S
Tilt speed: 0.1°/S ~ 120°/S
Preset speed: 400°/S
Ship weight: 15Kg, Unit weight: 12Kg
Mounting: Fixed bracket, base & pole
ELECTRICAL
Input voltage: 100VAC~240VAC, 50/60Hz
Current:＜300mA
Power: ＜30W
Communication: RS-485
Communication rate: Multiple, to be set
Preset: 128
Preset accuracy: ≤ 0.1°
Connection: 6-core for power, control and video.
ENVIRONMENTAL
Air pressure: 86～106KPa
Temperature: -45℃~+60℃
Humidity:≤95%RH(+25℃)
Network camera
| Network | |
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Max. Image Resolution: | 1920×1080 |
| Frame Rate: | 50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720) |
| 60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720) | |
| Image Compression: | H.264 / MJPEG |
| ROI encoding: | Support 2 areas with adjustable levels |
| Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2 |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| No. of Simultaneous Users: | Up to 20 users |
| Dual Stream: | Support |
| Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures: | User authentication (ID and PW), host authentication (MAC address) |
| EZVIZ: | Support |
| Camera | |
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
| Effective Pixels: | 1920(H)x1080(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color : 0.05 lux (F1.4, 1/30 sec, 50 IRE, AGC On) |
| B/W : 0.01 lux (F1.4, 1/30 sec, 50 IRE, AGC On) 0 lux with IR | |
| Color : 0.02 lux (F1.4, 1/1 sec, 50 IRE, AGC On) | |
| B/W : 0.002 lux (F1.4, 1/1 sec, 50 IRE, AGC On) 0 lux with IR | |
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 52dB |
| BLC: | ON/OFF |
| HLC: | Support |
| Smart defog: | Support |
| WDR: | Support |
| Shutter Time: | 1-1/10,000s |
| Day& Night: | ICR |
| Digital Zoom: | 16X |
| Privacy Masking: | 2 privacy masks programmable |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 4.7-94mm, 20x |
| Zoom Speed: | Approx.3s(Optical Wide-Tele) |
| Angle of View: | 58.3-3.2 degree (Wide-Tele) |
| Minimum Working Distance: | 10-1000mm(Wide-Tele) |
| Aperture Range: | F1.6-F3.5 |
| Client GUI | |
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client |
| Client: | Support iVMS-4200 |
| Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |

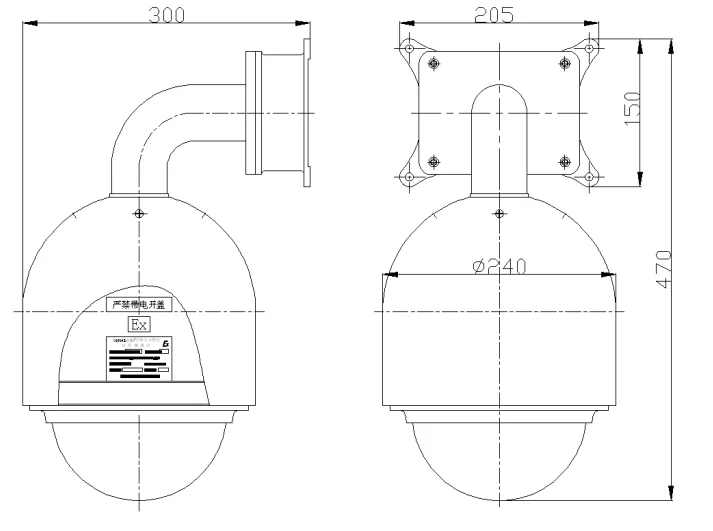

Dimension
