Description:

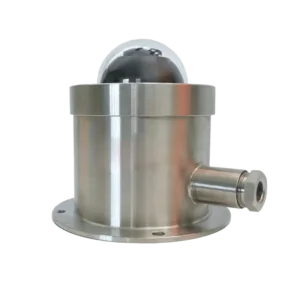

113-520IP is explosion proof integrated ptz camera,furnished with a super extremely starlight network camera module of 20x optical zoom @ 6.5-130mm, resolution 3840*2160, offer clear video in all 24 hours, good choice to work in environment with IIA, IIB,IIC, T1-T6 group of explosive flammable gas and with explosive atmosphere of zone 0, 1 and zone 2, flammable mists or dusts , where is classified as Zone 20, 21 & Zone 22 risk sites in addition to coal mine methane gas, other explosive gas and dust environment. Such as: refining, oil production, gas production, chemical industry, fireworks production, grain processing and storage, gas stations and other environments.
High-torque permanent magnet step motor with high precision planetary gear reducer to ensure its accuracy and long product life, stainless steel housing certified with IP68, in the harsh environment of any use.
Built-in multi-function receiver/driver, with perfect reliability to control the camera with almost all the functions, The internal structure of the pieces made from copper or steel.
Integration of design, compact structure, small size, easy installation and maintenance, with functions of maximum cruise speed of ex-proof products and characteristic speed change, it has flexible operation and quicker feedback
Features
- Ex-proof mark: EXdbIICT6 Gb/ EXtbIIICT80°C Db
- H.264/265/MJPEG, ONVIF compliant.
- 1/1.8’’ Progressive Scan CMOS, 3840*2160, 20x optical zoom, 6.5-130mm
- Applicable to Zone0,1, Zone 2, Zone 20, 21, Zone 22 and dust-ignition environment
- 316L, 316, 304 stainless steel optional
- Integrated configuration, built-in multifunctional receiver/driver
- Support High definition outputnetwork encode output.
- Compact ex-proof camera housing and pan/tilt unit
- Polished finish appearance, corrosion-proof treated internal parts
- Optional external washer tank to send water up to 20 meters
Specification
Pan-tilt
| Body structure | Integration, no cables outside, cable entry can not rotate | |||
| Explosion proof | EXdbIICT6 Gb / EXtbIIICT80°C Db | |||
| Protection grade | IP68 | |||
| Environment | Zone 0,1, zone 2, zone 20, 21 and zone 22 | |||
| Working temperature | -40℃ to 60℃ | |||
| Body material | 304 | |||
| Pan movement | 360° | |||
| Pan movement speed | 0 to 150°/s | |||
| Tilt movement | -15 to 90° | |||
| Tilt movement | 0 to 90°/s | |||
| Step motor | High-torque permanent magnet step motor with high precision planetary gear reducer | |||
| Movement structure inside | Gear structure inside, internal structure of the pieces made from copper or steel | |||
| Gross weight | 6 kg | |||
| Communication | ONVIF or RS-485 semi-duplex | |||
| Communication distance | Network or 1200m for RS485 | |||
| Communication protocol | Onvif or PELCO-D (or other protocol according to customer requirement) | |||
| Baud rate | 1200/2400/4800/9600/19200 | |||
| Working power | 12V DC/220V AC | |||
| Consumption | 5W | |||
| Water tank Spray | optional | |||
| Sunshield | none | |||
| Wiper | none | |||
| Heater | None, optional | |||
| Preset | 255 | |||
| Cable requirement | Power cable:2×1.0㎡（24VDC）/, 2×0.75㎡（220VAC） Communication cable: STP:2×0.75㎡, Video cable: 75Ω |
|||
Network camera Module
| Image Sensor: | 1/1.8″ Progressive Scan CMOS |
| Effective Pixels: | 3840(H)x2160(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color : 0.01 lux (F1.5 AGC On) |
| B/W : 0.05 lux (F1.5, AGC On) | |
| Stream rate | 32kbps to 16Mbps |
| White Balance: | Auto/Manual |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 55dB |
| BLC: | ON/OFF |
| Noise reduction | 2D/3D |
| HLC: | Support |
| Smart defog: | Support |
| WDR: | Support |
| Shutter Time: | 1/3-1/30,000s |
| Day& Night: | ICR Auto or digital color to B/W |
| Digital Zoom: | 16X |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 6.5-130mm, 20x optical |
| Zoom Speed: | Approx.4s(Optical Wide-Tele) |
| Angle of View: | 56.9-2.9°(Wide-tele) |
| Minimum Working Distance: | 100mm-1000mm(Wide-Tele) |
| Aperture Range: | F1.5-F4.8 |
Web page
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client |
| Web Browser: | IE 7+, Google 42-, Firefox 5.0 + |
Dimension
Diameter 14cm * 25cm
