In general
this 1116-52L2-IP is furnished with a 52x optical zoom camera block,offers perfect video for all weather applications, laser illuminator or thermal camera, which make this PTZ achieve visible light, low illumination, bad haze weather, night and other 24/7 uninterrupted target recognition and tracking.
High duty die-cast shock-absorbing alloy housing with strong painting for Waterproof and corrosion proof, Heat insulation, high temperature and cold resistance, impact resistance, corrosion resistance, with good wind resistance and shock absorption performance.
Features
H.264/265/MJPEG main profile, support 4 code stream, ONVIF compliant.
Extremely starlight camera, 1/1.8’’ Progressive Scan CMOS, up to 1920×1080, 52x optical zoom.
It could penetrate through the fog.
Integrated with high-quality synchronous laser, laser focusing lens zoom synchronization, this model is furnished L2 laser, its distance could be 500 meters.other laser is available, up to 1.5km.
Uncooled IR thermal camera is optional to this PTZ , which could work with visible camera in same client.
With Edge computing and intelligent tracking capability, furnished with Deep learning algorithm, it could learn target’s posture, form, etc. And plus inertial reference, long-time movement target, etc. Algorithm to form automatic tracking.
Real-time synchronization of imaging and computation
Image imaging, encoding and intelligent operation are completed under the same SoC core, with high operation efficiency and low delay of data synchronization, exchange, distribution, verification and response.The system kernel can handle more than 50 frames per second tracking operation, tracking response is timely, the target is not easy to lose.
radar, spectrum, etc Multiple cooperation and control modes, It can access radar or spectrum longitude and latitude, distance, height and other information, accept the target position guidance, quickly search for suspicious targets, automatic locking, analysis and confirmation.
IP67 waterproof, with wiper.
Portable design for vehicle application.
Specifications
Mechanical
| Pan angle | 0°～360° Continuously |
| Pan speed | 0°～80°/s |
| Tilt angle | 0°～90° |
| Tilt speed | 0°～60°/s |
| Accuracy | ±0.05° |
| Preset | 256 |
| Cruise | 8, every cruise could have 32 presets |
| Pattern | 8, every pattern can record 10 minutes |
| Line scan between 2 points | 4, it can set direction and scan speed |
| Scan of 360 degrees | 1, it can set speed. |
| Cruise of timing | It can call preset, cruise, pattern, etc. |
| Home position | It can call preset, cruise, pattern, etc. |
| Electronic manual limit | It can set horizontal or vertical limit |
| Position feedback | Encoding feedback |
| 3D position | Real-time absolute position control |
| Coordinate display | yes |
| Power failure record | yes |
| Work temperature | -35℃～+55℃ |
| Work humidity | <95% |
| Water proof | IP67 |
| Fan and heater | Temperature control automatically(<0℃, turn on the heater; >40℃, trigger the fan) |
| Weight | 7.0KG |
Laser spec.
| Wavelength | 808±5nm |
| Safe grade | Class 4 (FDA,IEC) |
| Illumination angle | Electric synchronous zoom,0.8°to 72° continuously adjustable |
| zoom speed | Less than 10 seconds (Wide-Tele) |
| Output power | 4W |
| Illumination angle | Wide 0.8°: effective distance≥1500meter, spot diameter:21m
Tele 72°: effective distance≥40meter, spot diameter:58m |
| Power Consumption | <28W |
| Wavelength | 808±5nm |
| Network | |
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Max. Image Resolution: | 40960Kbps 1920×1080 |
| Frame Rate: | 50Hz main stream (1920×1080@50fps), main stream (1280×960@50fps) , main stream (1280×720@50fps); sub stream1 (704×576@25fps), (352×288@25fps), sub stream 2 (1920×1080@50fps), (1280×760@50fps), (704×576@50fps), (352×288@50fps) |
| 60Hz: main stream (1920×1080@60fps), main stream (1280×960@60fps) , main stream (1280×720@60fps); sub stream1 (704×480@30fps), (352×240@30fps), sub stream 2 (1920×1080@60fps), (1280×720@60fps), (704×576@60fps), (352×288@60fps) | |
| Image Compression: | H.264 /H265/ MJPEG |
| ROI encoding: | Support 2 areas with adjustable levels |
| Audio Compression: | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| Protocols: | IPv4,IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,
TCP,UDP,IGMP, ICMP,DHCP；PPPoE,ARP,SNMPv1/v2c/v3(MIB-2) ,RTCP |
| No. of Simultaneous Users: | Up to 20 users |
| User/Host Level: | Up to 19 users,3 Levels: Administrator, Operator and User |
| Security Measures: | User authentication (ID and PW), host authentication (MAC address) |
| Camera | |
| Image Sensor: | 1/1.8″ Progressive Scan CMOS |
| Effective Pixels: | 1920(H)x1080(V)1 |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color : 0.002 lux (F1.8 AGC On) |
| B/W : 0.0002 lux (F1.8, AGC On) 0 lux with IR | |
| White Balance: | Auto/Manual |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 52dB |
| BLC: | ON/OFF |
| Noise reduction | 3D |
| HLC: | Support |
| Smart defog: | Support |
| WDR: | Support |
| Shutter Time: | 1/25-1/100,000s |
| Day& Night: | ICR Auto or digital color to B/W |
| Digital Zoom: | 16X |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 6.1-317mm, 52x |
| Zoom Speed: | Approx.3.9s(Optical Wide-Tele) |
| Angle of View: | 46.2-0.96 degree (Wide-Tele) |
| Minimum Working Distance: | 10m0m-1000mm(Wide-Tele) |
| Aperture Range: | F1.4-F4.7 |
| Client GUI | |
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling
and programming, auto mode |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client |
| Client: | Support |
| Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |

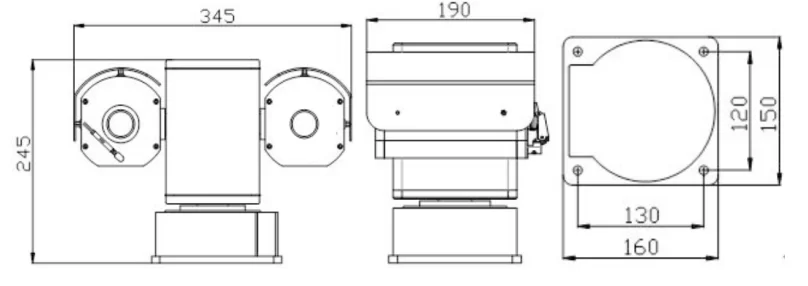

Dimension
