In general

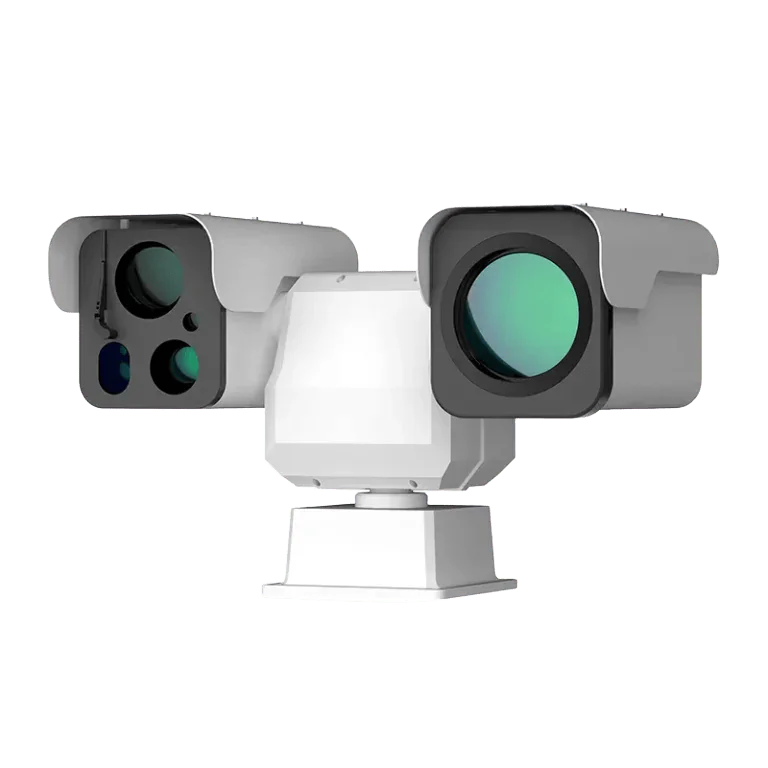

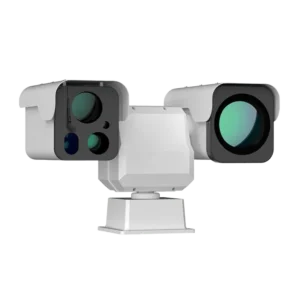

This 1163-10550T6350L-IP Multi-spectrum Laser PTZ Camera integrates a visible camera of 4.0MP, 55x optical zoom,a Laser Range Finder of 3km and a thermal camera of 640*512, 30-150mm motorized zoom lens, it offers standard onvif stream, it could achieve very precise ptz operation and long range surveillance.
We design its major for long-distance monitoring within 20 kilometers. applicaitons including fire and smoke detection in forest surveillance, human or object intrusion in border and coastal defense, etc. It can achieve 24-hour intelligent supervision, reducing the workload of personnel supervision and improving the accuracy of supervision.
Features
◇ H.264/265/MJPEG main profile, support 3 code stream, ONVIF compliant.
◇ Offers fire and smoke identification, ship tracking; Support 3D alert/shield area, any Angle scene can be set. Support human, motor vehicles, non-motor vehicles, boats breaking into, leaving, staying, wandering, crossing the boundary and other behavior analysis; Can be deeply customized according to customer requirements.
◇ one ip address with 2 video of thermal and visible camera.
◇ It could penetrate through the fog.
◇ Clearer imaging with the latest generation 12 μ m uncooled infrared detector and leading infrared image algorithm.
◇ Data read-back: it could read back zoom ratio and PTZ Angle, which facilitates intelligent analysis by intelligent software such as Geografhic Information System (GIS) to track and locate fire situation, human and vehicle.
◇ Weather proof design,salt-spray resistant, high die-cast aluminum construction, anti-shock, anti-corrosion.
◇IP66 waterproof, with auto-induction wiper. automatic defogging, deicing and heating.
Specifications
Mechanical
| Pan angle | 0°～360° Continuously |
| Pan speed | 0.01°～100°/s |
| Tilt angle | -90°～90° |
| Tilt speed | 0.01°～60°/s |
| Accuracy | ±0.01° |
| 3D orientation | support |
| Postion automatically returns | it can automatically go to its original position upon external impact |
| preset | 255 |
| Patrol | 16 |
| Apple peel scanning | 32 Kbps~16Mbps |
| Time period scanning | support |
| Temperature control | automatical heat |
| Power Off Memory | support |
| Remote update | support |
| Remote power-off restart | support |
| Browser | Automatic sensing/manual |
Network and Port
| Ethernet | 1, RJ45 10M/100M/1000M self-apative |
| Protocol | TCP/IP,UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,IGMP,
SMTP, NTP, QoS, etc. |
| Access | GB/T 28181, GA/T 1400, ONVIF |
| Alarm input | 2 |
| Alarm output | 1 |
| Simultaneous Live View | Up to 20 channels |
| Users | Up to 20 users, 3 levels: Administrator , Operator and User |
Professional intelligence
| fire smoke detection | Supports, minimum recognition pixel 10*10, supports linkage and tracking,
and joint judgment of visible camera and thermal camera |
| Deep perimeter | Support analysis of regional intrusion, departure, boundary crossing, lingering,
and staying, etc |
| Supports dual-spectrum detection of people, motor vehicles, non-motor vehicles
and ships, and provides linked tracking and alarm |
Thermal Camera
| Detector type | Uncooled vanadium oxide infrared focal plane detector | |
| Spectral range | 8~14μm | |
| Pixels | 640X512 | |
| Pixel size | 12μm | |
| sensitivity | ≤40mK @25°C,F#1.0 | |
| Sun protection against scorching | Support | |
| noise reduction | 3D | |
| Focus | Motorized/auto，manual | |
| Focal length | 100mm | 30~150mm |
| FOV | 4.4°×3.5° | 14.6°×11.7°~2.9°×2.3° |
| Iris | F1.2 | F0.85-F1.2 |
| Color Palettes | 20 modes selectable such as Blackhot/ Whitehot/ Rainbow, etc. | |
Visible camera
| Sensor type | 1/2.5” Progressive Scan CMOS |
| Maximum Pixels | 2688*1520 |
| visible camera pixel | 4MP |
| s/n ratio | ≥55dB |
| WDR | 120dB Optical wide dynamic range |
| minimal illumination | color: 0.005Lux @(F1.5,AGC ON) |
| B/W: 0.0005Lux @(F1.5,AGC ON) | |
| Video adjustment | support |
| noise reduction | 2D/3D |
| Anti-shake | electronic image stabilization |
| iris | auto iris |
| strong light inhibition | support |
| Day/night switch | auto/manual |
| Focus mode | auto / one time/ manual /Semi-automatic focus |
| Focus | 10-550mm |
| optical zoom | 55x |
| Digital zoom | 16x |
| Horizontal view angle | 58.2°×34.8°~1.2°×0.7° |
| Iris | F1.5-F5.5 |
| Fog Reduction | Optical Fog Reduction |
Laser illumator or Laser Range Finder
| Illumination | Laser illuminator |
| Laser Spectral Range | 808nm |
| Illuminating Distance | 1500m |
| LRF | Laser Range Finder |
| Laser Spectral Range | 905nm/1535nm |
| Measurement Distance | 2km/3km/6km |
Video/audio parameter
| Video encoding | H.264/H.265/MJPEG |
| Resolution | Thermal camera：
Main stream:50Hz:25fps (1280×1024,1024×768)， Sub stream: 50Hz:25fps (640×512， 320×256) |
| Visible camera：
Main stream: 25fps (2688*1520,2560*1440, 1920*1080); sub stream: 25fps(1920*1080,1280*720); |
|
| Frame ratio | 32 Kbps~16Mbps |
| Audio compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| encoding format | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
/16-64Kbps(AAC) |
Web page
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris,
preset calling and programming, auto mode |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Web Browser | IE 7+, Google 42-, Firefox 5.0 + |
In general
| Conditions | -40℃~+70℃;<90%RH |
| Power Supply | DC 48V±15% |
| Protection Level | IP66,TVS 6000V Lightning Protection, Surge Protection
and Voltage Transient Protection |
| Power Consumption | Max.300W |
| Dimensions | 623.6mm×398.5mm×350mm |
| Peripherals | Defrost heater, Rain-sensing wiper, Temperature and humidity sensor |
| Weight | 30kgs |
