In General

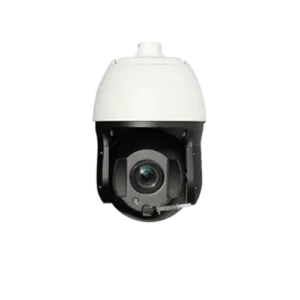

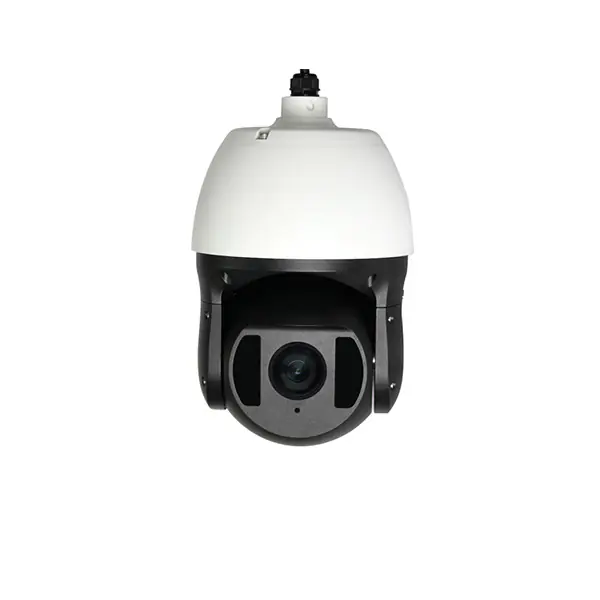

This 11263-37 Network High speed camera integrates a network camera module block of 37x optical zoom and up to 150m IR illumination to make this ptz can work in all weather environment to achieve continuous monitoring of day and night.
Full aluminum structure, special pan-tilt design and long time application offer this PTZ perfect all applications.
Functions
◇H.264/265,MJPEG compression & ONVIF compliant
◇ 150m illumination,high-quality synchronous IR, focusing lens zoom synchronization.
◇1/1.8’’ Progressive Scan CMOS, up to 2560×1440,6.5-240mm, 37x optical zoom
◇ Configuration by Web page
◇ IP66 waterproof, with wiper.
◇ can work in extreme low temperature of -40° celsius
◇ It could penetrate through the fog.
◇ 360°continuously rotation, the range upward angle up to 180°, no blind spot.
◇ 255 preset positions and with 6 cruising tracks
SPECIFICATIONS
| Camera | ||
| Image Sensor | 1/1.8″ Progressive Scan CMOS | |
| Effective Pixels | 2560(H) x 1440(V), 4 Megapixels; | |
| Minimum Illumination | Color: 0.0005Lux@F1.5; W/B: 0.0001Lux@F1.5 (IR on) | |
| Lens | ||
| Focal Length | 6.5mm~240mm | |
| Optical Zoom | Optical Zoom 37x , 16x digital zoom | |
| Aperture Range | F1.5-F4.8 | |
| Field of View | H: 58.6-2.02° (Wide-Tele) | |
| V: 45.32-1.51° (Wide-Tele) | ||
| Working Distance | 100-1000mm (Wide-Tele) | |
| Zoom Speed | Approx. 3.5 s (optical lens, wide-tele) | |
| PTZ | ||
| Pan Range | 360° endless | |
| Pan Speed | 0.05°~300° /s | |
| Tilt Range | -15°~93° | |
| Tilt Speed | 0.05°~90°/s | |
| Number of Preset | 255 | |
| Patrol | 6 patrols, up to 18 presets per patrol | |
| Pattern | 4, with the total recording time not less than 10 mins | |
| Power loss recovery | Support | |
| Infrared | ||
| IR distance | Up to 150m | |
| IR intensity | Automatically adjusted, depending on the zoom ratio | |
| Video | ||
| Compression | H.265/H.264 / MJPEG | |
| Streaming | 3 Streams | |
| BLC | BLC / HLC / WDR (120dB) | |
| White Balance | Auto,ATW,Indoor,Outdoor,Manual | |
| Gain Control | Auto / Manual | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Interoperability | ONVIF, PSIA, CGI | |
| Web Viewer | IE10/Google/Firefox/Safari… | |
| General | ||
| Power | AC 24V, 50W(Max) | |
| Working temperature | -40℃ ~ 60℃ | |
| Humidity | 90% or less | |
| Protection level | Ip66, TVS 4000V Lightning protection, surge protection | |
| Mount option | Wall Mounting, Ceiling Mounting | |
| Weight | 6.5kg | |

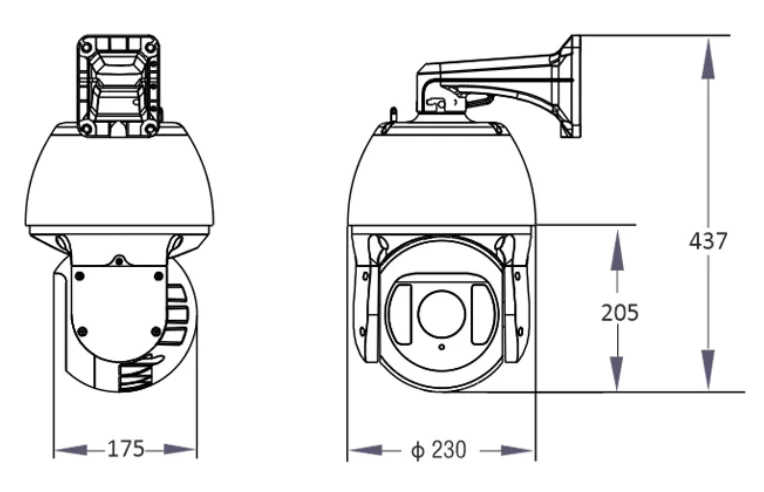

Dimension:
