In General

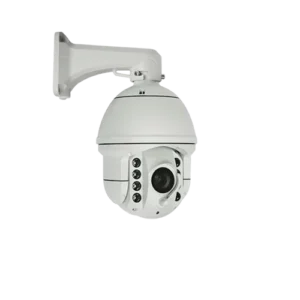

this 1237-IR-IP33 network ptz is furnished with a 33x optical zoom camera block, offers perfect video for all weather applications, plus 120m IR illumination, which make this PTZ achieve visible light, low illumination, bad haze weather, night and other 24/7 uninterrupted target recognition and tracking.
High duty die-cast shock-absorbing alloy housing with strong painting for Waterproof and corrosion proof, Heat insulation, high temperature and cold resistance, impact resistance, corrosion resistance, with good wind resistance and shock absorption performance.
Functions
◇H.264/265 compression & ONVIF compliant
◇ 120m white light illumination,high-quality synchronous IR, focusing lens zoom synchronization.
◇1/2.8’’ Progressive Scan CMOS, up to 1920×1080,5.5-180mm, 33x optical zoom
◇ Configuration by Web page
◇ IP66 waterproof, with wiper.
◇ can work in extreme low temperature of -40° celsius
◇ It could penetrate through the fog.
◇ 360°continuously rotation, the range upward angle up to 180°, no blind spot.
◇ 255 preset positions and with 6 cruising tracks
SPECIFICATIONS
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max. Image Resolution | 40960Kbps 1920×1080 |
| Main stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz:30fps (1920 × 1080, 1280× 960, 1280 × 720) |
| Sub stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280× 960, 1280 × 720) |
| 3th stream | Individual to main stream, D1 (720×576): Max. 30 fps |
| Image Compression | H.264 /H265/ MJPEG |
| ROI encoding | Support 2 areas with adjustable levels |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,
RTCP,NTP,SMTP,SN MP,IPv6 |
| Network integration | ONVIF profile S, profile G |
| No. of Simultaneous Users | Up to 20 users |
| User/Host Level | Up to 19 users,3 Levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW) |
| Camera | |
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
| Effective Pixels: | 1920(H)x1080(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color : 0.001 lux (F1.5 AGC On) |
| B/W : 0.0005 lux (F1.5, AGC On) 0 lux with IR | |
| White Balance: | Auto/Manual |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 52dB |
| BLC: | ON/OFF |
| Noise reduction | 3D |
| HLC: | Support |
| Smart defog: | Support |
| WDR: | Support |
| Shutter Time: | 1/25-1/100,000s |
| Day& Night: | ICR Auto or digital color to B/W |
| Digital Zoom: | 16X |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 5.5-180mm, 33x optical |
| Zoom Speed: | Approx.3.5s(Optical Wide-Tele) |
| Angle of View: | 60.5-2.3°(Wide-tele) |
| Minimum Working Distance: | 100mm-1500mm(Wide-Tele) |
| Aperture Range: | F1.5-F4.0 |
| Web Client | |
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging,
Iris, preset calling and programming, auto mode |
| Object tracking | Turn on / off |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Web Browser | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
Mechanical
| ir distance | 120m |
| Pan speed | 0.05°~120°/s |
| Pan preset speed | 180°/s |
| Tilt speed | 0.5°~100°/s |
| Tilt preset speed | 100°/s |
| Pan angle | 360° Continuously |
| Tilt angle | (+90° to-90°) |
| Preset | 255 |
| Cruise Tour | 6, every cruise can have 16 preset maximum |
| Communication | TCP/IP |
| Relative humidity | 90% without agglomeration |
| Work temperature | -40 to 55 deg. celsius |
| Power supply | AC24V 3A |
| Protection | IP66, TVS4000V, lightning protection, surge protection |
| Weight | 6Kg |
Dimension
