In General

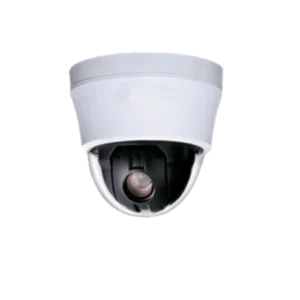

This 3035OM1 AHD/CVI/TVI/Analog Mini High speed dome camera is furnished with 1/2.9”2.0MP CMOS, 10x optical zoom, good choice for day/night application.
Functions
- 1/2.9” 2.0MP CMOS, 10x optical zoom, 1080p, AHD/TVI/CVI/Analog available
- Pleco D, P protocol, baud rate can set ,RS 485 communication
- Powerful OSD menu for setup of Programmable Functions, support full screen OSD menu.
- With function of auto focus, auto iris, auto white balance and auto backlight compensation etc. to have clear camera scene at any time.
- Built-in linear power for anti-surge and anti-Lightning protection
- 256 preset.
- 50m IR
- 8 cruise tours, every tour can have 30 preset.
- 4 Pattern tours, to save 100 actions.
- 360° continuous panning, -90°～90° tilting rotation, automatic flip
- Limit setting, to set the pan or tilt movement in a scope.
SPECIFICATIONS
Specifications for Pan-tilt:
| Address | 0~255 |
| Pan range | 360°Continue |
| Tilt range | 0°~90° Flip |
| Manual speed Pan | 0.01~240°/Sec |
| Manual speed Tilt | 0.01~180°/Sec |
| Preset speed | 300°/Sec |
| Preset accuracy | ±0.01° |
| Preset | 256 |
| Cruise Tours | 8, every tour have 30 preset |
| Speed setup for cruise tour | Yes |
| Pattern Tours | 4, to record 100 action |
| horizontal Scan | 1 |
| Zone scan | Support, to set 2 point to generate this scan. |
| Integrate multi-protocol | Pelco_D/P |
| Home position | Yes, preset, cruise tour, pattern tour, auto scan, etc. available |
| anti-surge and anti-Lightning protection | Yes |
| OSD menu operation | Yes, support full screen OSD display |
| Supporting camera | Sony, Samsung, etc. |
| Camera character programming | Support full screen OSD display |
| Ingress Protection | IP66 |
| Operating Temperature | –20℃~55℃ |
| Humidity | 0%~90% (Non condensing) |
| Heater operate | (-5)℃ on +5℃ off |
| Power | DC12V, 3A |
| Consumption | heater off 6W heater on 11W |
| communication | RS485 (+/-) |
| Connection | BNC cable |
| Operating temperature | -20 to 50 °C |
| Housing material | Aluminum alloy |
| IR distance | 50m |
| size | Diameter:142mm, height:123mm |
| Dimension | 38.5X38.5X26.5cm/ctn,4pcs/ctn |
| Weight | 6.1kgs/ctn, 4pcs/ctn |
Camera
| Image Sensor | 1/2.9″ CMOS |
| Focal Length | 10x optical zoom, f=4.7mm(Wide) to 47.0mm (Tele), F1.6-2.5 |
| Zoom Speed | NTSC: 1.9sec, Pal: 1.84sec (Optical WIDE-TELE ) |
| Angular of View | H : 57.6°(Wide) to 5.8°(Tele),
V: 36.4°(Wide) to 4.3°(Tele) |
| Scanning System | 2:1 Interlace |
| Synchronization | Internal/ VD-Lock |
| Min. Working Distance | 200mm (WIDE end), 1000mm (TELE end) |
| Effective pixels | 1920(H) x 1080(V) |
| Electronic shuttle | 1/30s-1/10000s |
| Signal System | NTSC / PAL |
| Min. Illumination | Color 0.1Lux, B/W: 0.01LUX, 0LUX IR ON |
| S/N (Y signal) | ≥50 dB (strengthen) |
| White Balance | Auto,Manual |
| Gain | Auto/Manual |
| Backlight compensation | ON/OFF |
| Video output | AHD/TVI/CVI/CVBS |
| IRIS Control | Auto,Manual |
